EV Station LiteSKU UC-EV-Station-Lite-US
- 11 kW max charging output with SAE J1772 charging plug
- 1.7" LCM display
each
Ubiquiti / Audio, Signage & Integrations

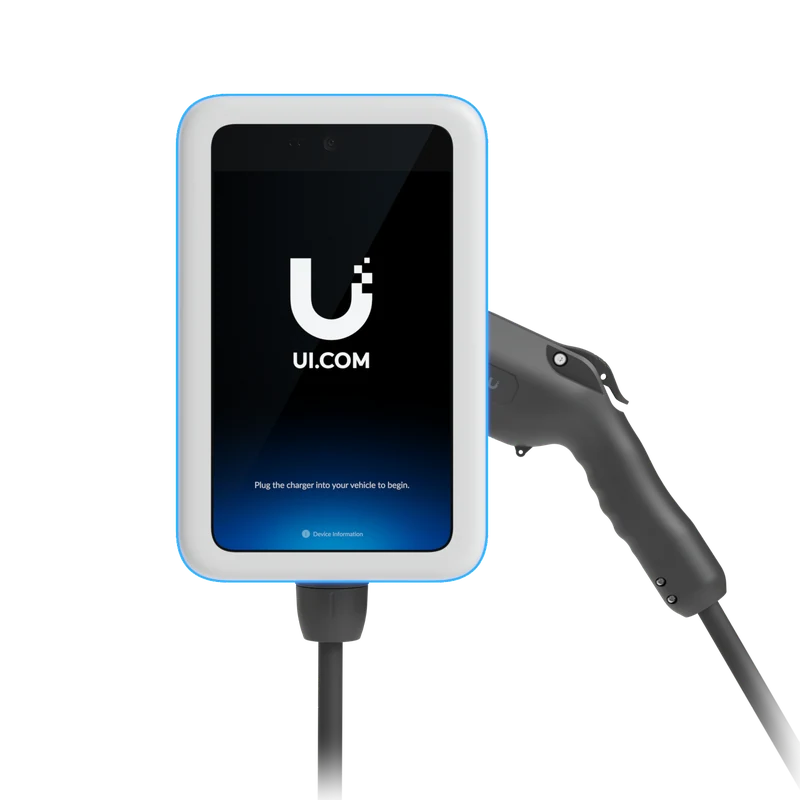

EV Station Pro
SKU UC-EV-Station-Pro-US
Weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1" touch display, flexible access control, and payment terminal accessory support.
- Ultra-bright 10.1" touch display
- 11 kW max charging output with SAE J1772 charging plug
- Media content playback for digital signage applications
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UC-EV-Station-Pro
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 280 x 178 x 143 mm (11 x 7 x 5.6”)
- Mounting
- Wall Mount or Stand
- Power Input
- 200–240V ~ 50A, 50/60Hz, 1φ
- Power Output
- 200–240V ~ 50A, 50/60Hz, 1φ
- Weatherproofing
- Type 3R
- Weight
- With wall mount/charging gun/power cord: 8.1 kg (17.9 lb)
- Enclosure Material
- Front modules: Polycarbonate Middle module: Aluminum, Polycarbonate
- Mount Material
- Polycarbonate
- Charging Cable Length
- 7 m (23 ft)
- Size
- 257 mm (10.1") diagonal
- Resolution
- 800 x 1280 (10:16)
- Luminance
- 800 nits (typical)
- Highlights
- Ultra-bright 10.1" touch display; 11 kW max charging output with SAE J1772 charging plug; Media content playback for digital signage applications; Access control with QR code scanning, UniFi Identity mobile app, and NFC card*
