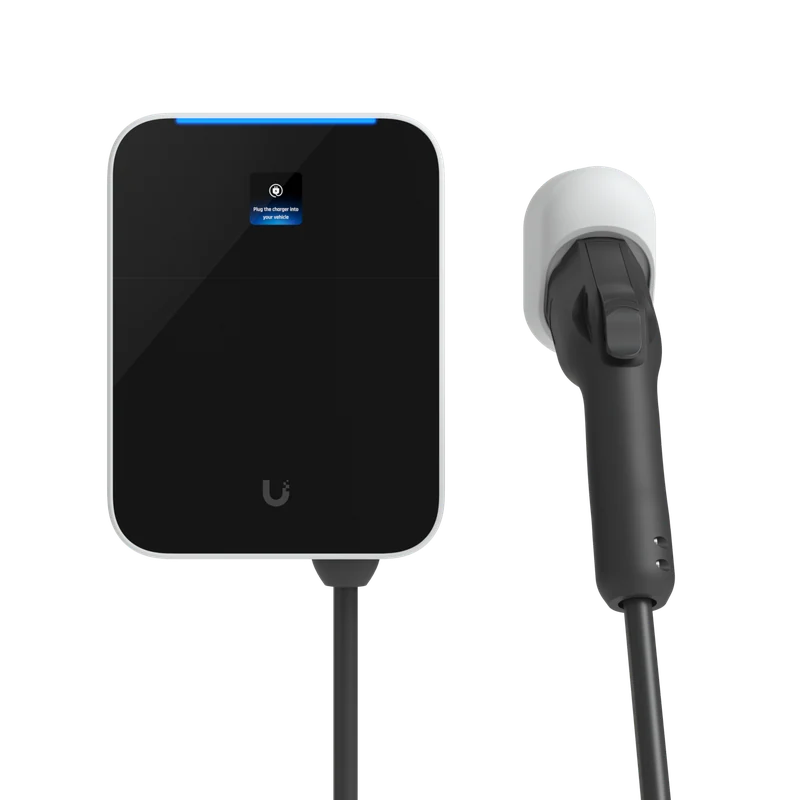

EV Station Lite
Manufacturer part # UC-EV-Station-Lite-US
Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UC-EV-Station-Lite
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”)
- Mounting
- Wall Mount or Stand
- Power Input
- 200–240V ~ 50A, 50/60Hz, 1φ
- Power Output
- 200–240V ~ 50A, 50/60Hz, 1φ
- Weatherproofing
- Type 3R
- Weight
- 5.9 kg (13 lb)
- Enclosure Material
- Polycarbonate
- Charging Cable Length
- 7 m (23 ft)
- Size
- 1.7" status display
- Processor
- Dual-core Arm® Cortex®-A53, 1 GHz
- Connectivity
- (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi
- Max. load
- 70A: 50A 60A: 48A 50A: 40A 40A: 32A 30A: 24A 20A: 16A
- Highlights
- 11 kW max charging output with SAE J1772 charging plug; 1.7" LCM display; Access control with UniFi Identity mobile app and NFC card*; Connected with UniFi WiFi Auto-Link or Ethernet
