Ubiquiti / Accessories

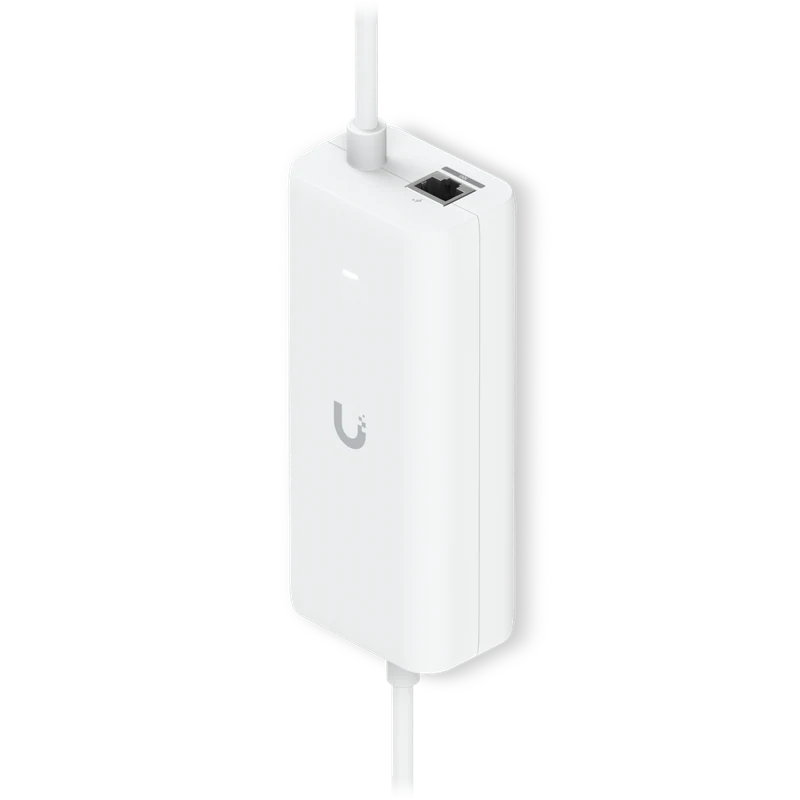

PoE Integrated AC Adapter
SKU UACC-PoE+-USBC
AC adapter with integrated PoE+ that powers a UniFi Cloud Gateway via USB-C while delivering up to 30W PoE+ to a connected device—ideal for adding PoE output or supporting a UniFi 5G backup, with flexible wall, DIN rail, or floating…
- Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UACC-PoE+-USBC
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 146 x 62 x 42 mm (5.7 x 2.4 x 1.7")
- Weight
- 358 g (12.6 oz)
- Length
- Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
- Output Voltage
- Type-C: 5V@ 5A PoE+: 48V@ 0.65A
- Rated Voltage
- 100–240V AC at 50/60Hz
- 4-pair Powering
- Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Clamping Protection
- 11V data, 60V power
- Data In / PoE
- RJ45 shielded socket
- Input Current
- 1.5A max.
- Inrush Current
- 120A
- Efficiency
- 82%
- Switching Frequency
- 65 kHz
