Ubiquiti / Power & Backup

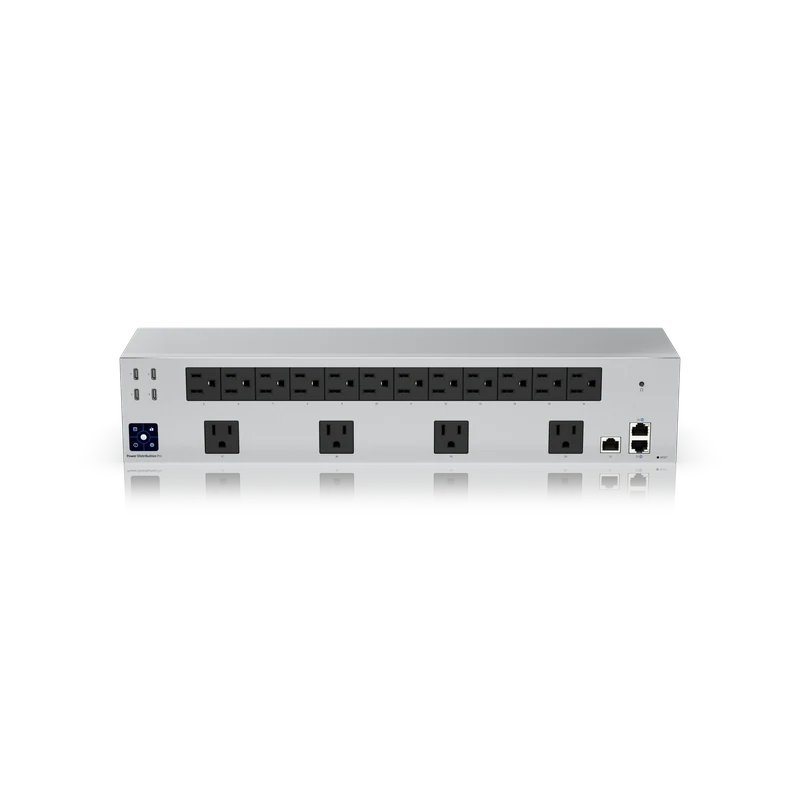

Power Distribution Pro
SKU USP-PDU-Pro
Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.
- (16) Remotely resettable outlets
- (4) USB-C ports
- 1.3" LCM touchscreen
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- USP-PDU-Pro
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2")
- Weight
- Without mount: 3.5 kg (7.6 lb) With mount: 3.7 kg (8.2 lb)
- Enclosure Material
- SGCC steel
- Management
- Ethernet
- Networking Interface
- (1) 100 MbE RJ45 port (3) GbE RJ45 ports
- Power Method
- 125V AC, 15A Max., 50/60 Hz
- Power Supply
- AC/DC internal, 40W
- Max. Power Consumption
- 125V AC: 1,875W
- Power Output
- (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total) (4) USB-C ports, 2A Max. per port (4A/20W Max. total)
- Display
- 1.3" touchscreen
- Buttons
- (1) Factory reset (1) Circuit breaker
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Highlights
- (16) Remotely resettable outlets; (4) USB-C ports; 1.3" LCM touchscreen; Virtual Router Redundancy*
