Ubiquiti UniFi / Door Access

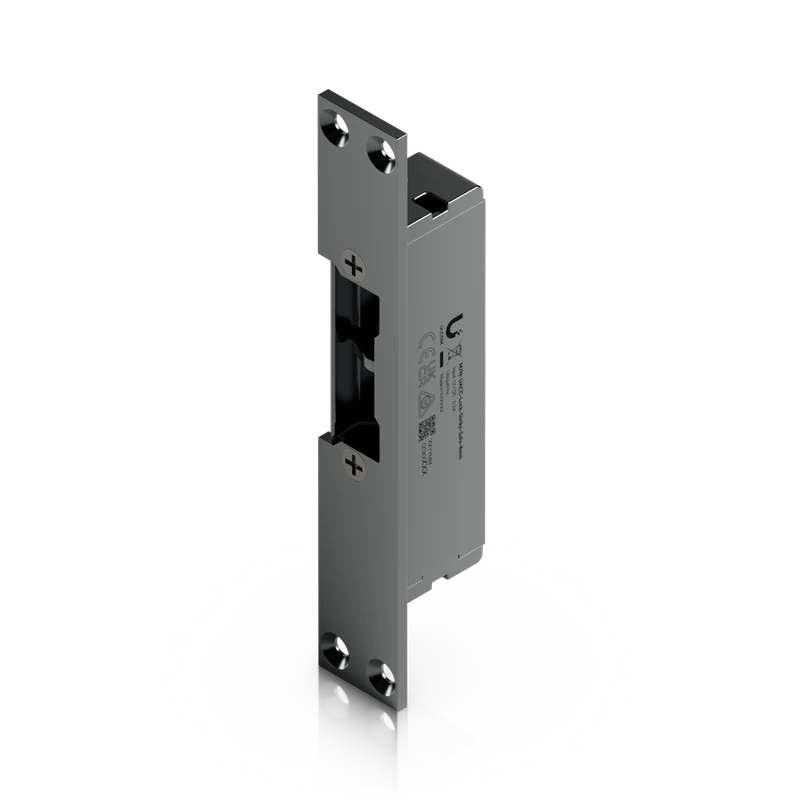

Access Fail-Safe Strike Lock (8 mm)
Manufacturer part # UACC-Lock-Strike-Safe-8mm
Fail-safe electric strike lock with 8 mm lock slot depth support.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-Lock-Strike-Safe-8mm
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1") Short front plate:152 x 24.5 x 3 mm (6 x 0.9 x 0.1") Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1")
- Weight
- Lock body: 200 g (7.0 oz) Short front plate: 62 g (2.2 oz) Long front plate: 97 g (3.4 oz)
- Enclosure Material
- Lock body: zinc alloy Front plate/latches: stainless steel
- Lock Type
- Fail safe
- Support Door Type
- Single door (Wooden/metal)
- Holding Force
- 227 kg (500 lb)
- Current Power
- 200mA ± 10%
- Support Voltage Range
- 12V DC ±10%
- Wiring
- (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange)
- Mounting
- Door frame recess mount
- Type
- Dry contact
- Logic
- Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
