Ubiquiti / Door Access

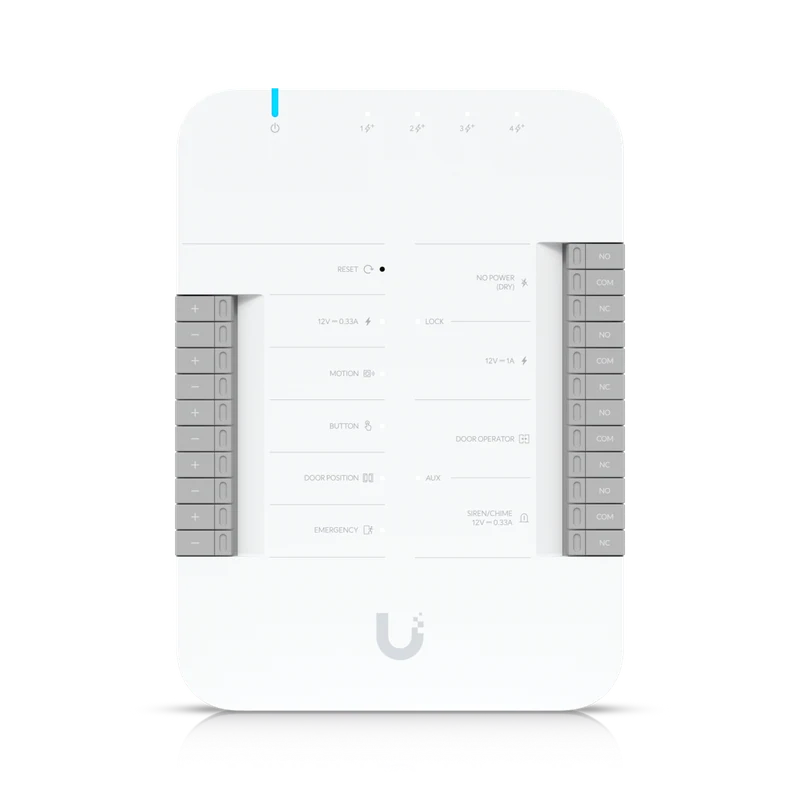

Access Door Hub
SKU UA-Hub-Door
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
- (2) Lock terminals (12V and Dry)
- (2) AUX terminals for an external siren and automatic door opener
- (4) Additional inputs (sensors and buttons)
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UA-Hub-Door
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Additional Inputs
- 4 Additional Inputs
- Lock Terminals
- 2 Lock Terminals
- AUX Terminals
- 2 AUX Terminals
- PoE
- 4 PoE Ports
- Dimensions
- 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
- Supported Doors
- 1
- Maximum User Count
- 6,000
- Input Terminals
- (2) Door exit request (1) Door position (1) Emergency
- Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Weight
- 363 g (12.8 oz)
- Enclosure Material
- Polycarbonate
- Highlights
- (2) Lock terminals (12V and Dry); (2) AUX terminals for an external siren and automatic door opener; (4) Additional inputs (sensors and buttons); Connect and power using PoE++
