Ubiquiti / Door Access

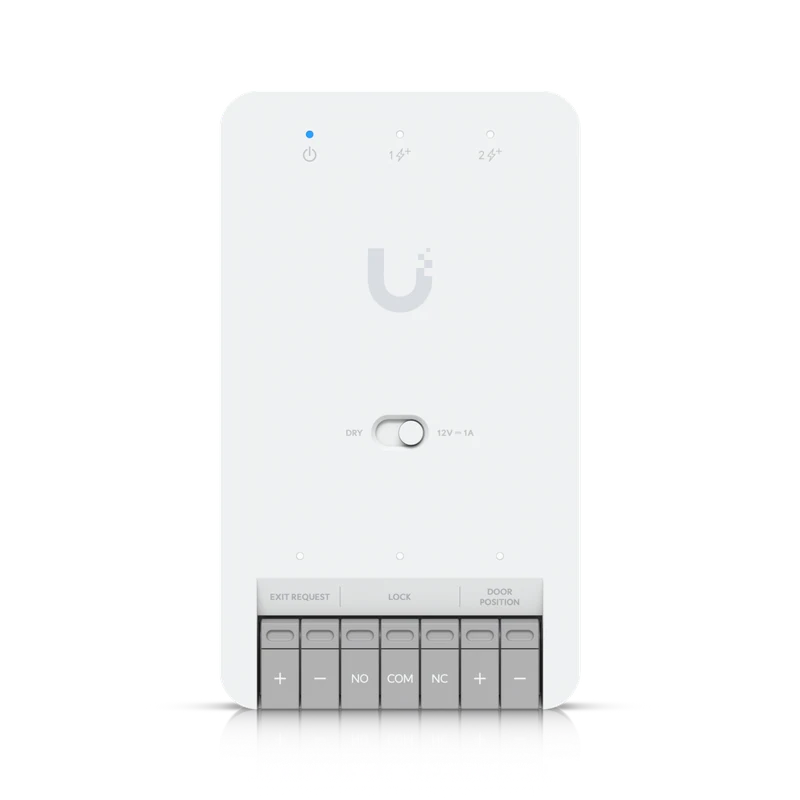

Access Door Hub Mini
SKU UA-Hub-Door-Mini
Compact Access Control Hub for a single door.
- (1) Lock terminal (12V and Dry switchable)
- (2) Additional inputs (sensor and button)
- Connect and power via PoE++
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UA-Hub-Door-Mini
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Additional Inputs
- 2 Additional Inputs
- Lock Terminals
- 1 Lock Terminal
- PoE
- 2 PoE Ports
- Dimensions
- 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
- Supported Doors
- 1
- Maximum User Count
- 3,000
- Input Terminals
- (1) Door exit request (1) Door position
- Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Weight
- 190 g (6.7 oz)
- Enclosure Material
- Polycarbonate, metal
- Mounting
- DIN-rail (Included)
- Highlights
- (1) Lock terminal (12V and Dry switchable); (2) Additional inputs (sensor and button); Connect and power via PoE++; Connect up to two UniFi Access Readers or Protect Cameras
