Ubiquiti / Door Access

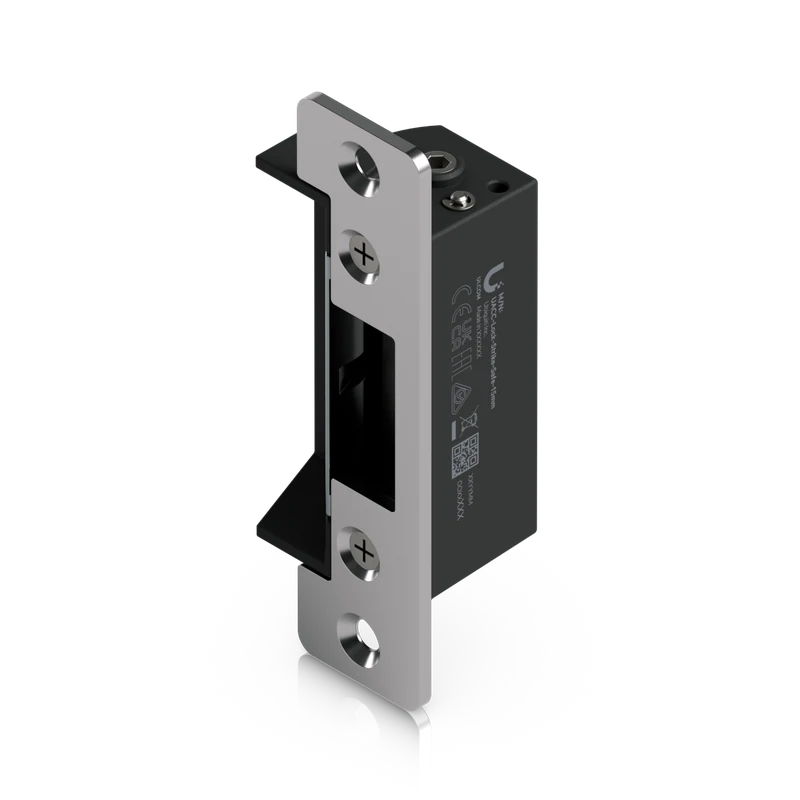

Access Fail-Safe Strike Lock (15 mm)
SKU UACC-Lock-Strike-Safe-15mm
Fail-safe electric strike lock that connects to a UniFi Access Hub.
- Door frame recess mount
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UACC-Lock-Strike-Safe-15mm
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")
- Weight
- Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz)
- Enclosure Material
- Lock body: zinc alloy Front plate/latches: stainless steel
- Lock Type
- Fail safe
- Support Door Type
- Single door (Wooden/metal)
- Holding Force
- 1,200 kg (2,645 lb)
- Current Power
- 400mA ±10%
- Support Voltage Range
- 12V DC ±10%
- Wiring
- (1) Lock 12V/NC (red) (1) Lock 12V/COM (black)
- Mounting
- Door frame recess mount
- Type
- Dry contact
- Logic
- Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short
