Ubiquiti UniFi / Door Access

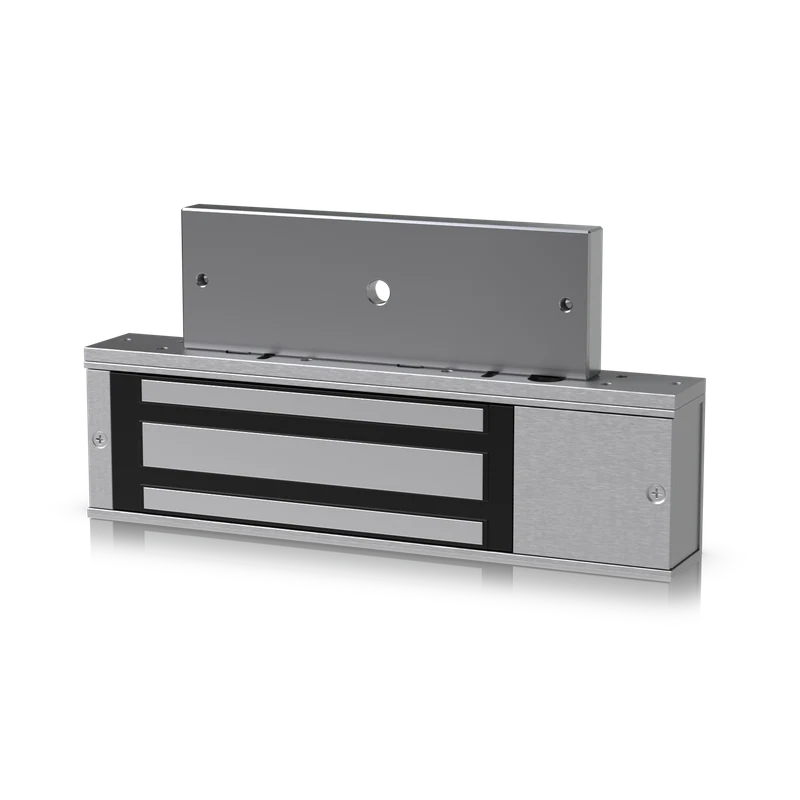

Access Magnetic Lock — Holds up to 540 kg (1200 lb)
Manufacturer part # UACC-Lock-Magnetic-540kg
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UA-Lock-Magnetic
- Holding force
- Holds up to 540 kg (1200 lb)
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
- Weight
- UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb)
- Enclosure Material
- Device/brackets: aluminum Armature: steel
- Lock Type
- Fail safe
- Support Door Type
- UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal)
- DPS
- Embedded
- Holding Force
- UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
- Current Power
- 500mA ±10%
- Support Voltage Range
- 12V DC ±10%
- Wiring
- (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow)
- Mounting
- UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and door gap ≤ 5 mm (≤ 0.2") UA-Lock-Magnetic-540kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket
- Highlights
- Holds up to 270 kg or 540 kg (600-1,200 lb); Can be installed on a wide variety of door types*; *— Access Lock Magnetic 270kg: All types including full glass — Access Lock Magnetic 540kg: All types excluding full glass
