Ubiquiti UniFi / Door Access

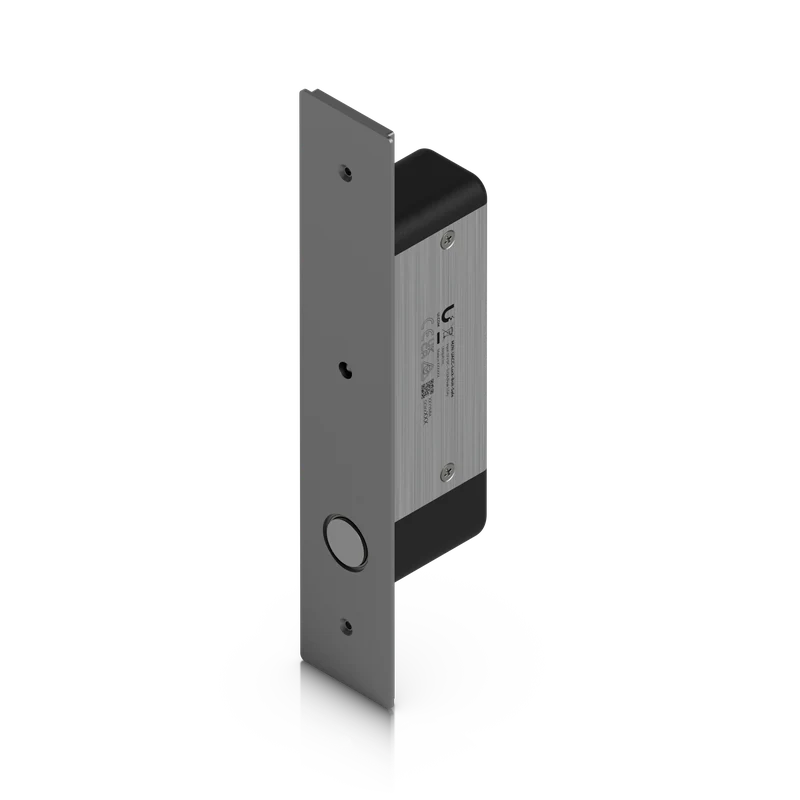

Access Fail-Safe Bolt Lock
Manufacturer part # UACC-Lock-Bolt-Safe
Fail-safe electric drop bolt lock.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-Lock-Bolt-Safe
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1")
- Weight
- Lock body: 350 g (12.3 oz) Door frame plate: 22 g (0.7 oz) Door plate: 46 g (1.6 oz)
- Enclosure Material
- Lock body: aluminum alloy Door frame plate/Door plate: aluminum alloy
- Lock Type
- Fail safe
- Support Door Type
- Single door (Wooden/metal)
- DPS
- Embedded
- Current Power
- Max. 900mA
- Support Voltage Range
- 12V DC ±10%
- Wiring
- (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange)
- Mounting
- Door frame recess mount
- LED Indicator
- Red: locked Green: unlocked & power indicator
- Type
- Dry contact
