Ubiquiti UniFi / Accessories

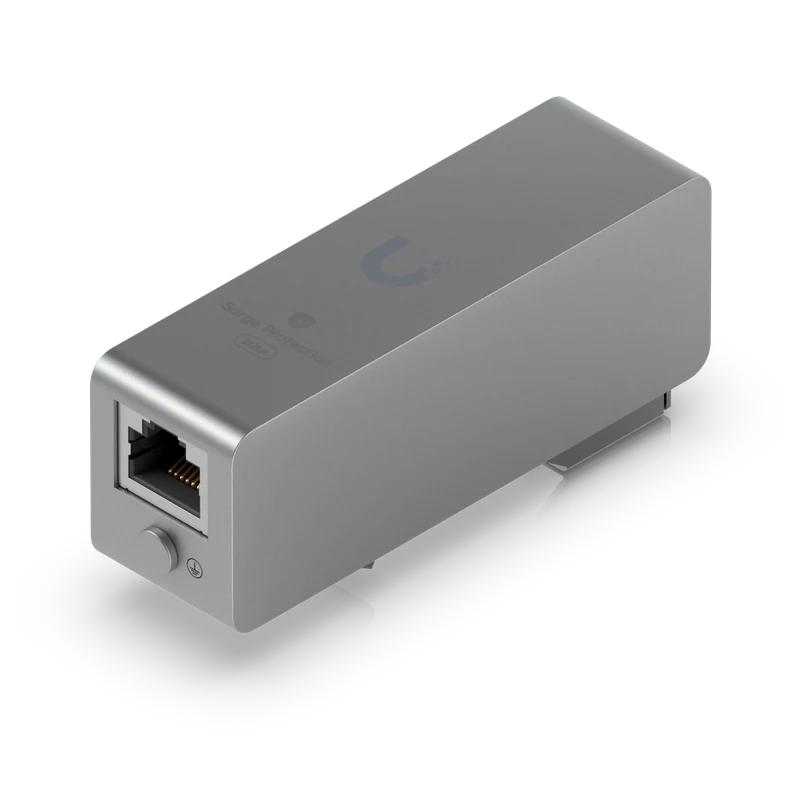

Ethernet Surge Protection (Single-Port)
Manufacturer part # UACC-ETH-SP-DIN
Bidirectional protection for up to 10 GbE, PoE+++, and 20kA surge discharge for indoor installation.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-ETH-SP-DIN
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
- Weight
- 74 g (2.6 oz)
- Enclosure Material
- Polycarbonate, SGCC steel
- Networking Interface
- (2) RJ45 female connectors
- DC Spark-Over Voltage
- 90V @ 100V/s
- Max. Impulse Spark-Over Voltage
- 600V @ 1kV/µs
- Discharge Current
- 20kA
- Insulation
- Max. Resistance: 1G ohm @ 50V
- Max. Capacitance
- 1.0 pF @ 1 MHz
- Data Line Protection
- Up to 10 Gbps
- ESD/EMP Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Ambient Operating Temperature
- -40° to +80° C (-40° to 176° F)
- Highlights
- Wall/DIN rail mount; Multiple grounding points
