Ubiquiti / Door Access

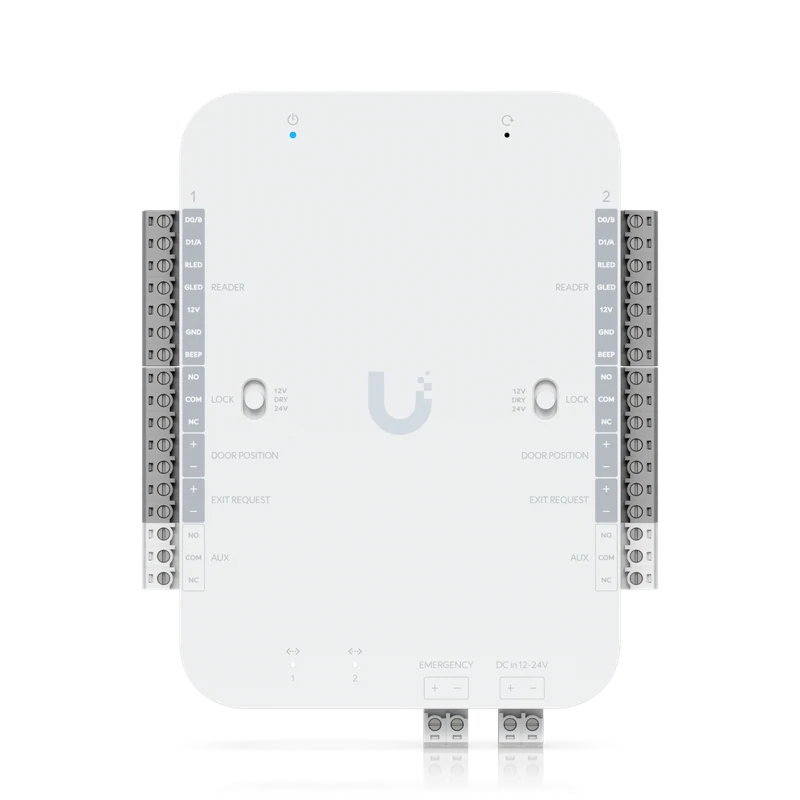

Access Retrofit Hub
SKU UA-Retrofit-Hub-2
DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UA-Retrofit-Hub-2
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Additional Inputs
- 2 Additional Inputs
- Lock Terminals
- 2 Lock Terminals
- AUX Terminals
- 2 AUX Terminals
- Dimensions
- 140 x 120 x 45 mm (5.5 x 4.7 x 1.8")
- Supported Doors
- 2
- Maximum User Count
- 10,000
- Input Terminals
- (2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency
- Power Method
- 12/24V DC
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Weight
- 420 g (14.8 oz)
- Enclosure Material
- Polycarbonate
- Mount Material
- SGCC steel
