Ubiquiti / Door Access

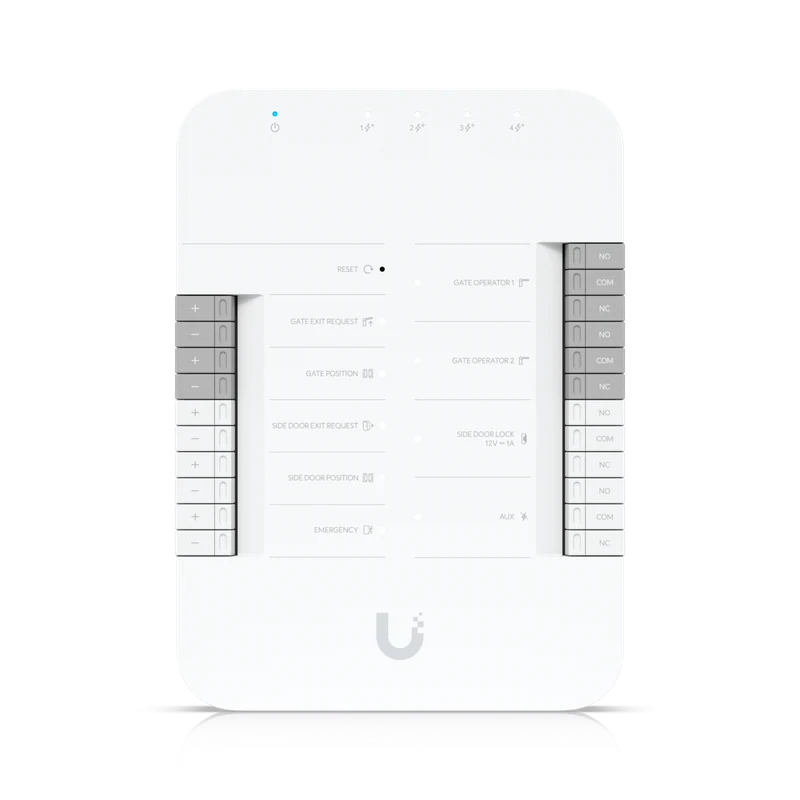

Access Gate Hub
SKU UA-Hub-Gate
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
- (2) Gate operator terminals (dry)
- (1) Lock terminal (12V) for side door
- (1) AUX terminal for an external siren
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UA-Hub-Gate
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Additional Inputs
- 5 Additional Inputs
- Lock Terminals
- 1 Lock terminal
- AUX Terminals
- 1 AUX terminal
- PoE
- 4 PoE Ports
- Dimensions
- 175 x 126 x 26 mm (6.9 x 5 x 1")
- Supported Doors
- 1 gate, 1 side door
- Maximum User Count
- 6,000
- Input Terminals
- (1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency
- Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- UL 294 Level
- Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
- Weight
- 460 g (1 lb)
- Enclosure Material
- Polycarbonate
- Highlights
- (2) Gate operator terminals (dry); (1) Lock terminal (12V) for side door; (1) AUX terminal for an external siren; (5) Additional inputs (sensors and emergency)
