Ubiquiti / Door Access

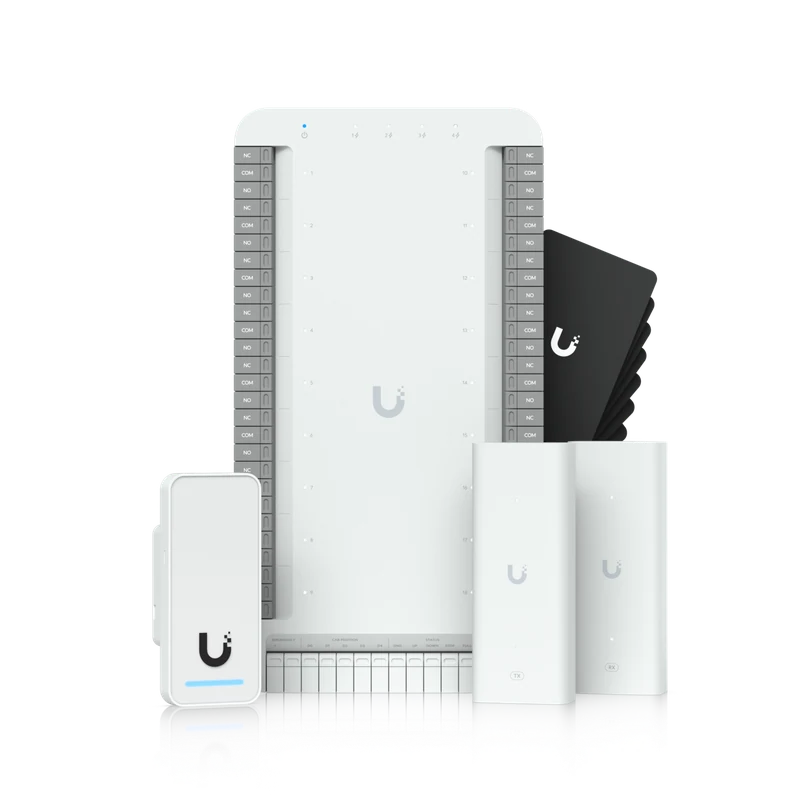

Access G3 Elevator Starter Kit
SKU UA-G3-SK-Elevator
Connects to in-elevator readers with PoE to authorize floor selection. Supports up to 18 floors with digital inputs for elevator car status and emergency.
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UA-G3-SK-Elevator
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- In the Box
- (1) Elevator Hub (1) G3 Reader (2) 2-wire PoE extenders (10) Access Cards
- Touch Pass
- 10 free 1-year Touch Passes included Learn More
- Dimensions
- 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
- Maximum User Count
- 6,000
- Power Method
- PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
- Weight
- 537 g (1.2 lb)
- Enclosure Material
- Polycarbonate
- Mounting Material
- Polycarbonate
- Networking Interface
- (4) 10/100/1000 Base-T
- PoE Interface
- (1) PoE++ input, 50V DC, 1.2A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
- Management
- (1) 10/100/1000 Base-T
- Max. Power Consumption
- 7W (Without PoE output)
