Ubiquiti UniFi / Accessories

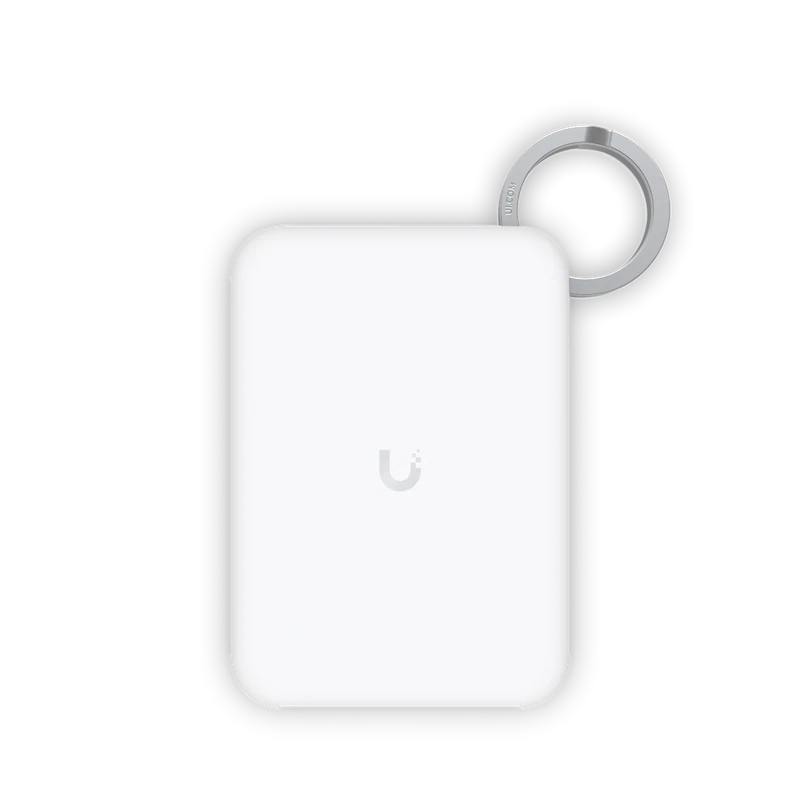

WiFiMan Wizard
Manufacturer part # WM-W
A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- WM-W
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3")
- Weight
- 32 g (1.1 oz)
- Enclosure Material
- Polycarbonate
- Weatherproofing
- IP55
- Power Method
- Li-ion battery
- Power Supply
- Rechargeable Li-ion battery, 3.7V DC, 300mAh
- Supported Voltage Range
- USB-C: 5V DC/1A
- Max. Power Consumption
- 32.4mW
- Frequency Range
- 2.4 to 2.5 GHz 5.15 to 5.85 GHz
- Amplitude Range
- -96 dBm to 0 dBm
- Amplitude Resolution
- 1 dBm
- LEDs
- W/B/R
- Highlights
- 2.4 GHz and 5 GHz unlicensed band scanning; 240 minutes continuous scanning battery life; BLE smartphone pairing with USB-C charging port; iPhone Magsafe attachable support*
