- Model

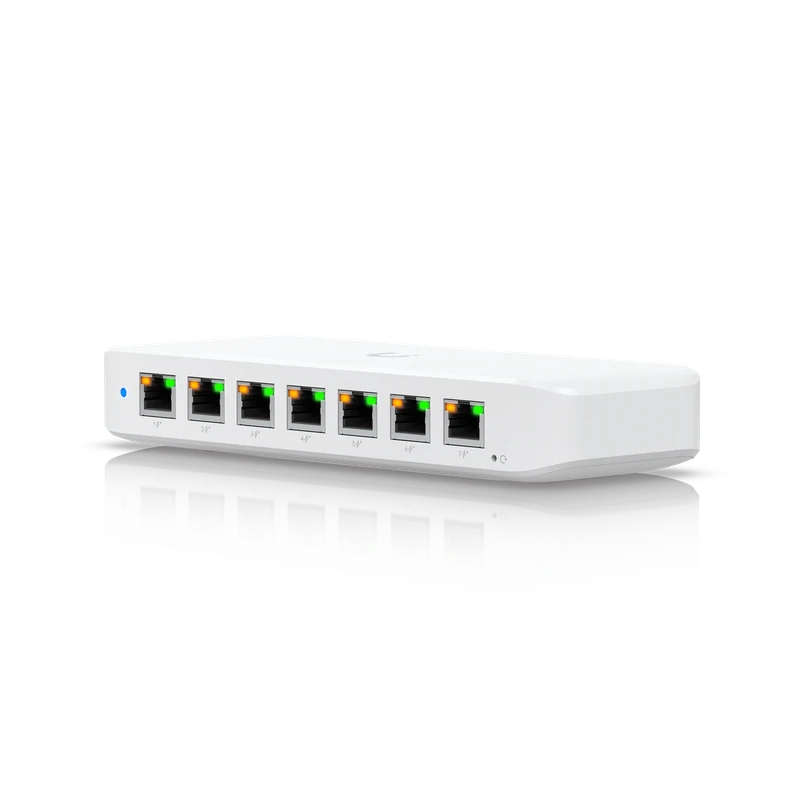

- USW-Ultra (42W)
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 203 x 76 x 33 mm (8 x 3 x 1.3")
- 1 GbE RJ45
- 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
- Max. PoE Output
- Up to PoE+
- Total PoE Availability
- PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W
- Form Factor
- Compact desktop, wall, magnetic
- Switching Capacity
- 16 Gbps
- Total Non-Blocking Throughput
- 8 Gbps
- Forwarding Rate
- 12 Mpps
- Supported VLANs
- 256
- MAC Address Table Size
- 4,000
- PoE+
- 7
- PoE++
- 1
- Highlights
- (7) GbE PoE+ output ports; (1) GbE PoE++ input port*; — 42W PoE availability with PoE++ input — 16W PoE availability with PoE+ input; *PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
