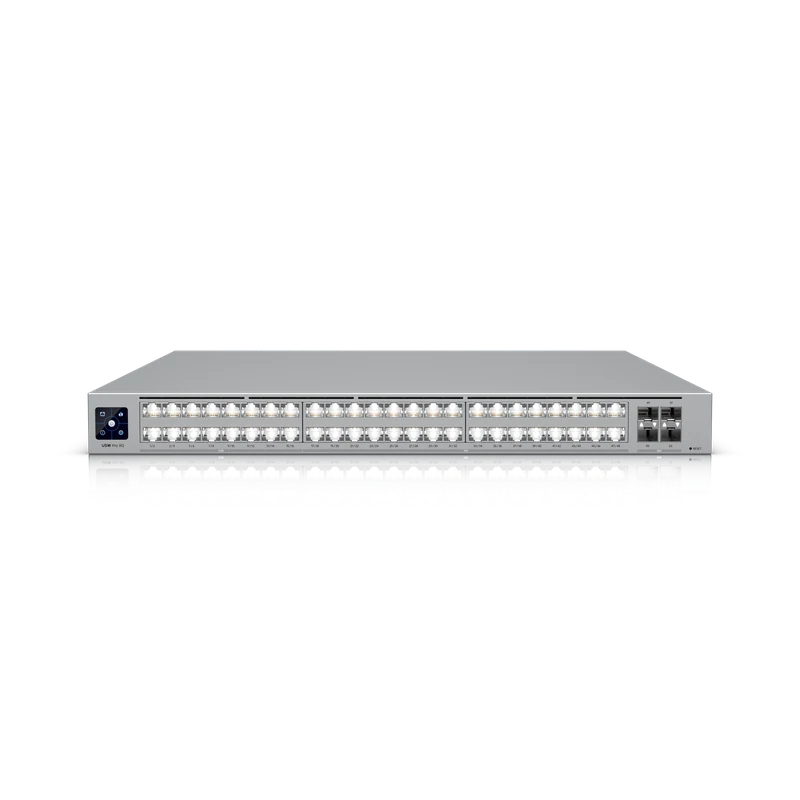

Switch Pro XG 48

SKU USW-Pro-XG-48

Professional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(32) 10 GbE, (16) 2.5 GbE ports
(4) 25G SFP28 ports

Quantity

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

Model: USW-Pro-XG-48
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
2.5 GbE RJ45: 16 (2.5G/1G/100M/10M)
10 GbE RJ45: 32 (10G/5G/2.5G/1G/100M/10M)
25G SFP28: 4 (25G/10G/1G)
Redundancy: DC Power Backup
Form Factor: Rack mount (1U)
Switching Capacity: 920 Gbps
Total Non-Blocking Throughput: 460 Gbps
Forwarding Rate: 684 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
IPv4 Static Routes: 512
Highlights: Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*; (32) 10 GbE, (16) 2.5 GbE ports; (4) 25G SFP28 ports; DC power backup ready**
