Ubiquiti UniFi / Switches

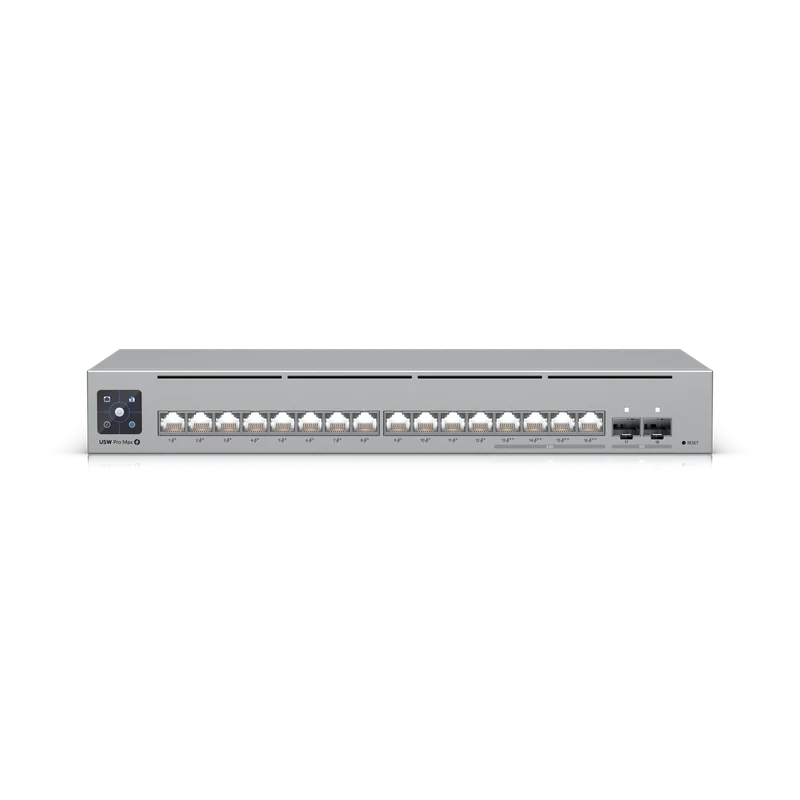

Switch Pro Max 16 PoE
Manufacturer part # USW-Pro-Max-16-PoE
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- USW-Pro-Max-16-PoE (180W)
- Variant
- US Version
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
- 1 GbE RJ45
- 12 (All PoE+) (1G/100M/10M)
- 2.5 GbE RJ45
- 4 (All PoE++) (2.5G/1G/100M/10M)
- 10G SFP+
- 2 (10G/1G)
- Max. PoE Output
- Up to PoE++
- Total PoE Availability
- 180W
- Form Factor
- Rack mount (1U), desktop, wall
- Switching Capacity
- 84 Gbps
- Total Non-Blocking Throughput
- 42 Gbps
- Forwarding Rate
- 62 Mpps
- Supported VLANs
- 1,000
- Highlights
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*; (4) 2.5 GbE PoE++ ports; (12) GbE PoE+ ports; (2) 10G SFP+ ports
