Ubiquiti UniFi / Switches

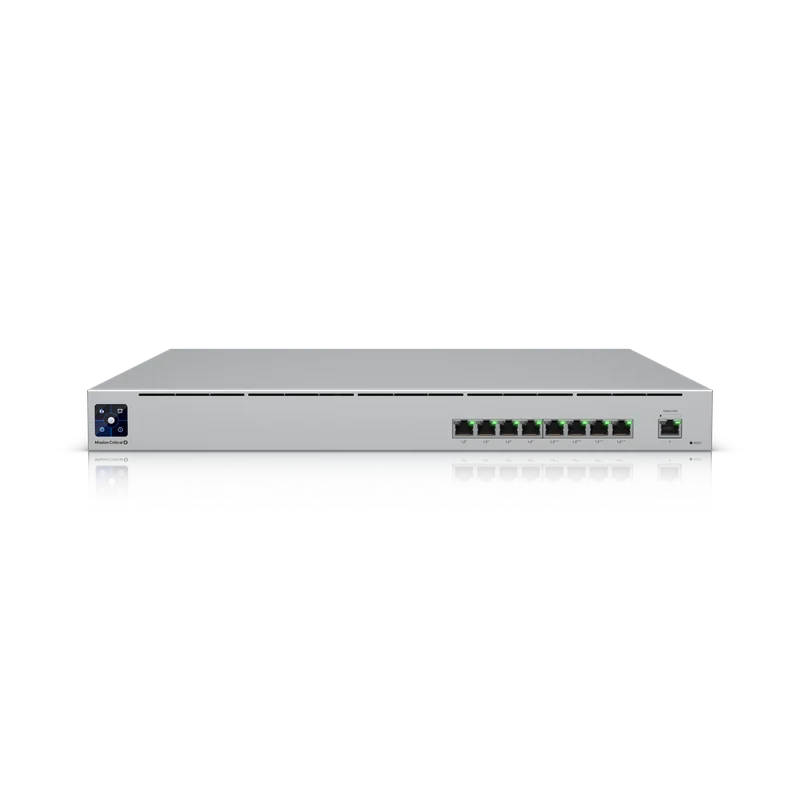

UPS PoE Switch Mission Critical
Manufacturer part # USW-Mission-Critical-US
A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- USW-Mission-Critical (120W)
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
- 1 GbE RJ45
- 9 (4 PoE+; 4 PoE++) (1G/100M/10M)
- Max. PoE Output
- Up to PoE++
- Total PoE Availability
- 120W
- Redundancy
- Battery Power Backup
- Form Factor
- Rack mount (1U)
- Switching Capacity
- 18 Gbps
- Total Non-Blocking Throughput
- 9 Gbps
- Forwarding Rate
- 13 Mpps
- Supported VLANs
- 1,000
- MAC Address Table Size
- 8,000
- Packet Buffer Size
- 0.5 MB
- Highlights
- (4) GbE PoE+, (4) GbE PoE++ ports; (1) GbE port; (2) 110V AC outputs; 120W total PoE available; Battery backup power system
