Ubiquiti UniFi / WiFi & Bridges

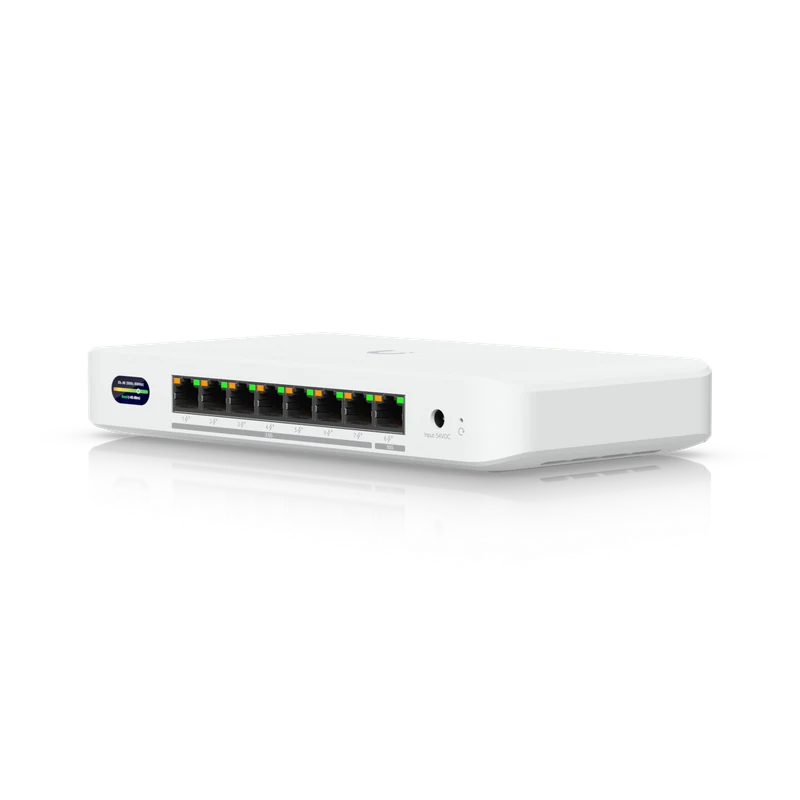

Device Bridge Switch
Manufacturer part # UDB-Switch-US
Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UDB-Switch (35W)
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
- WiFi Standard
- WiFi 7
- Spatial Streams
- 4
- Mounting Locations
- Desktop, wall
- Power Method
- DC jack (54V DC/1.1A)
- Power Supply
- 54V DC/1.1A (Adapter included)
- 6 GHz
- 23 dBm
- 5 GHz
- 26 dBm
- Max. Conducted TX Power
- 26 dBm (Combined)
- 802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
