Ubiquiti UniFi / WiFi & Bridges

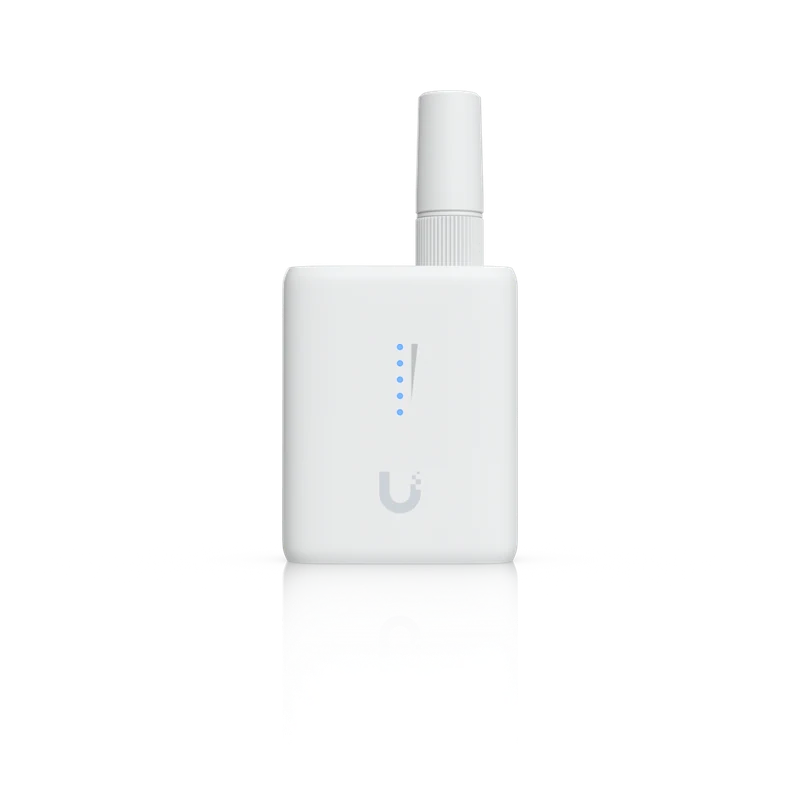

Device Bridge IoT
Manufacturer part # UDB-IoT-US
Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UDB-IoT
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- Device: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1") With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1")
- WiFi Standard
- WiFi 4
- Spatial Streams
- 2
- Mounting Locations
- Wall, DIN rail
- Mounting
- Included mount
- Power Method
- USB Type-C (5V DC, 1A) 4-pin DC (9–30V DC)
- 2.4 GHz
- 20 dBm
- Max. Conducted TX Power
- 20 dBm (Combined)
- 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Wireless Security
- WPA2 AES (Always On)
- Max. Power Consumption
- 2.3W
- Supported Voltage Range
- USB-C: 5V DC Socket: 9–30V DC
