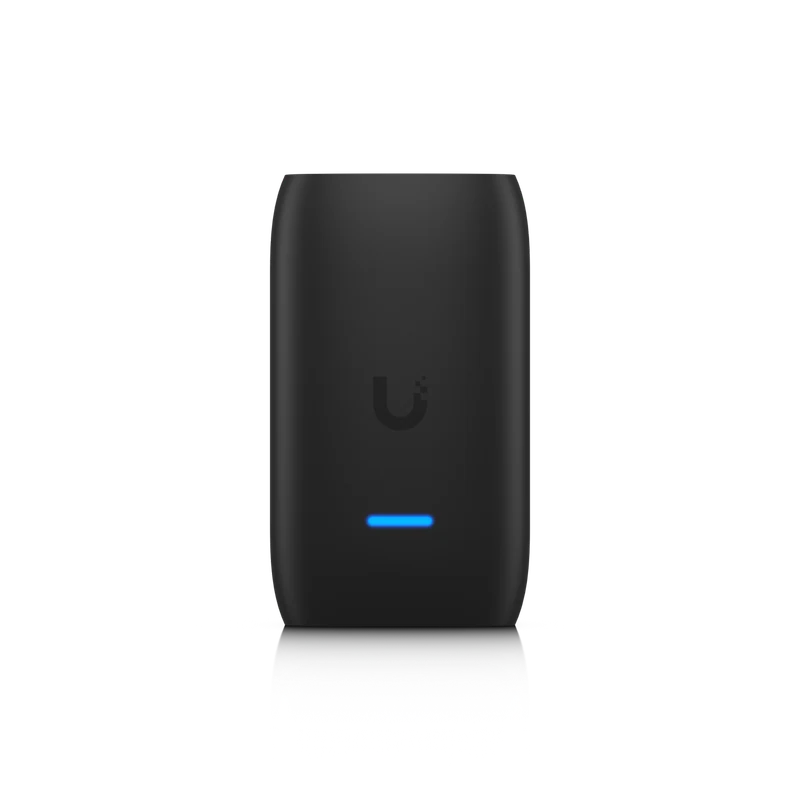

Display Cast Lite

SKU UC-Cast-Lite-US

Digital signage player designed for media playback on HDMI displays.

Supports media content playback up to 1080p resolution on any HDMI-compatible display
Automatically powers the display on or off with HDMI CEC
Powered by a USB-C adapter

Quantity

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

Model: UC-Cast-Lite
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: Without mount: 90 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 92.1 x 56.3 x 40.8 mm (3.6 x 2.2 x 1.6")
Display Output: (1) HDMI port
Video Content Support: 480p / 720p / 1080p
Weight: Without mount: 160 g (5.6 oz) With mount: 180 g (6.3 oz)
Pole Mount Diameter: 1~2" (25–50 mm)
Processor: Quad-Core Arm® Cortex®-A55, 1.9 GHz
Memory: Storage: 16 GB RAM: 2 GB
Power Method: (1) USB Type-C 5V DC, 1A
Max. Power Consumption: 5W
Connectivity: WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
WiFi Standards: 802.11 a/b/g/n/ac/ax
System: White/blue ( Learn More )
Highlights: Supports media content playback up to 1080p resolution on any HDMI-compatible display; Automatically powers the display on or off with HDMI CEC; Powered by a USB-C adapter; Connects easily with UniFi WiFi Auto-Link
