Ubiquiti UniFi / WiFi & Bridges

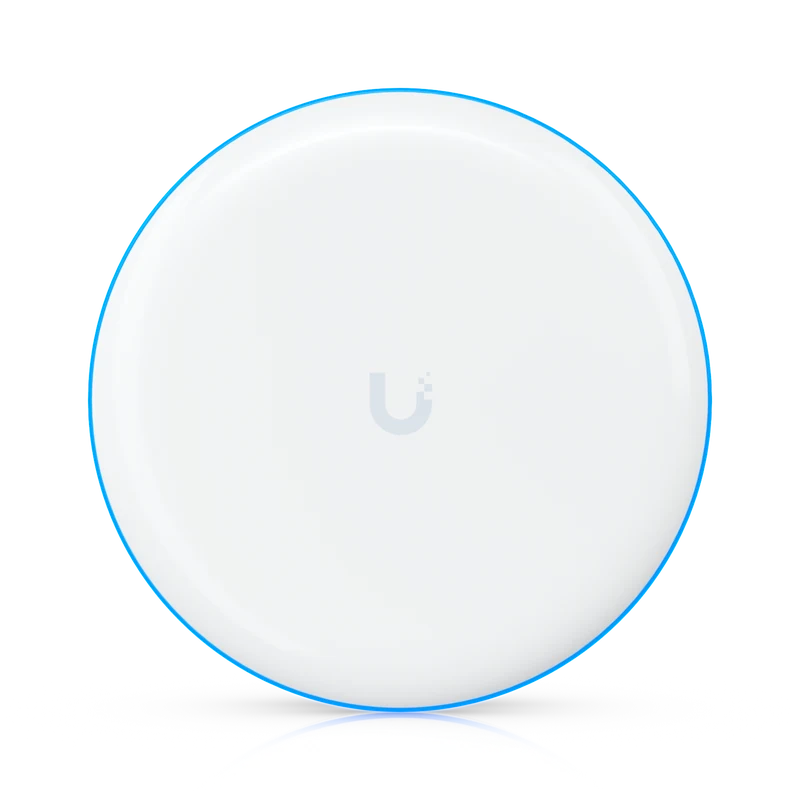

Building-to-Building Bridge XG
Manufacturer part # UBB-XG-Single-US
60 GHz wireless point-to-point bridge with a 10G SFP+ uplink for maximum performance and a 5 GHz backup radio.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UBB-XG
- Pack Type
- Single Unit
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- ⌀191.8 x 59 mm (⌀7.6 x 2.3")
- WiFi Standard
- WiFi 5
- Spatial Streams
- 2
- Coverage Area
- 500 m (1,640 ft)
- Mounting Locations
- Wall, pole
- Weatherproofing
- IPX6
- Power Method
- PoE++ Passive PoE
- 5 GHz
- 23 dBm
- 60 GHz
- 16 dBm
- 2.4 GHz
- 2 dBi (BLE)
- 802.11ac (WiFi 5)
- 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
- Highlights
- 500 m (1,640 ft) maximum range; 60 GHz & 5 GHz dual-radio redundancy; (1) 10G SFP+ and (1) GbE PoE++ port; Powered using PoE++*
