Ubiquiti UniFi / Accessories

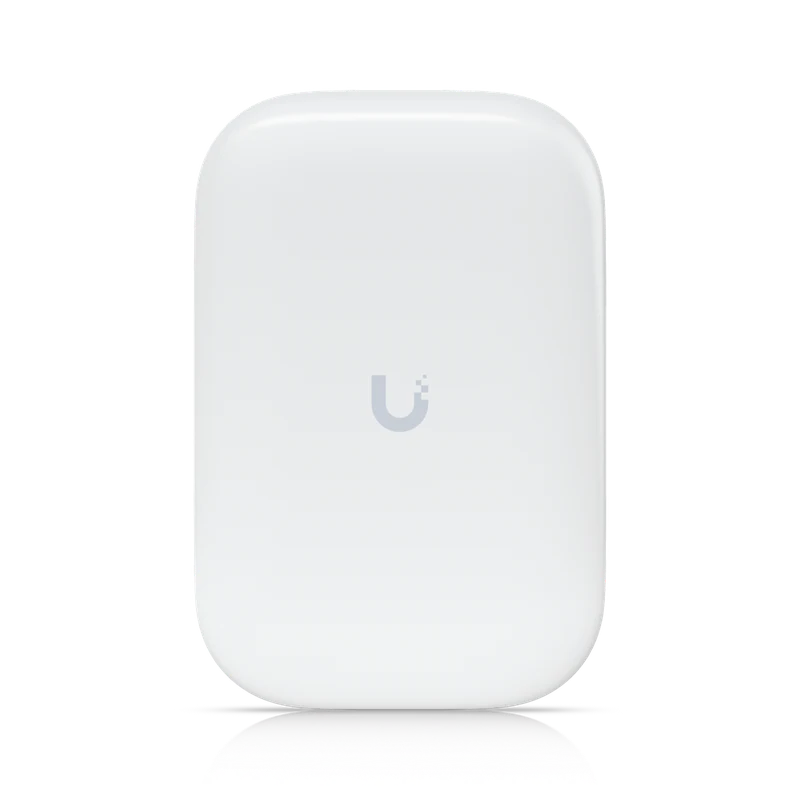

Panel Antenna Ultra
Manufacturer part # UACC-UK-Ultra-Panel-Antenna
Sleek, clip-on external antenna for the Swiss Army Knife that provides 90-degree directional, extended range coverage.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-UK-Ultra-Panel-Antenna
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 138 x 207 x 43 mm (5.4 x 8.1 x 1.7")
- Weight
- 450 g (1 lb)
- Enclosure Material
- UV-stabilized polycarbonate, aluminum
- Mounting
- 1~2" on pipe outer diameter Compatible with the UK-Ultra
- Wind Survivability
- 75 N at 200 km/h (16.7 lbf at 125 mph)
- Weatherproofing
- IPX6
- 5 GHz
- 15 dBi
- 2.4 GHz
- 10 dBi
- Highlights
- High-efficiency 90° directional radiation pattern; Optimized for dual-band, extended range coverage; Clip-on attachment with support for all Swiss Army Knife mounting methods; Weatherproof (outdoor exposed)
