Ubiquiti UniFi / Accessories

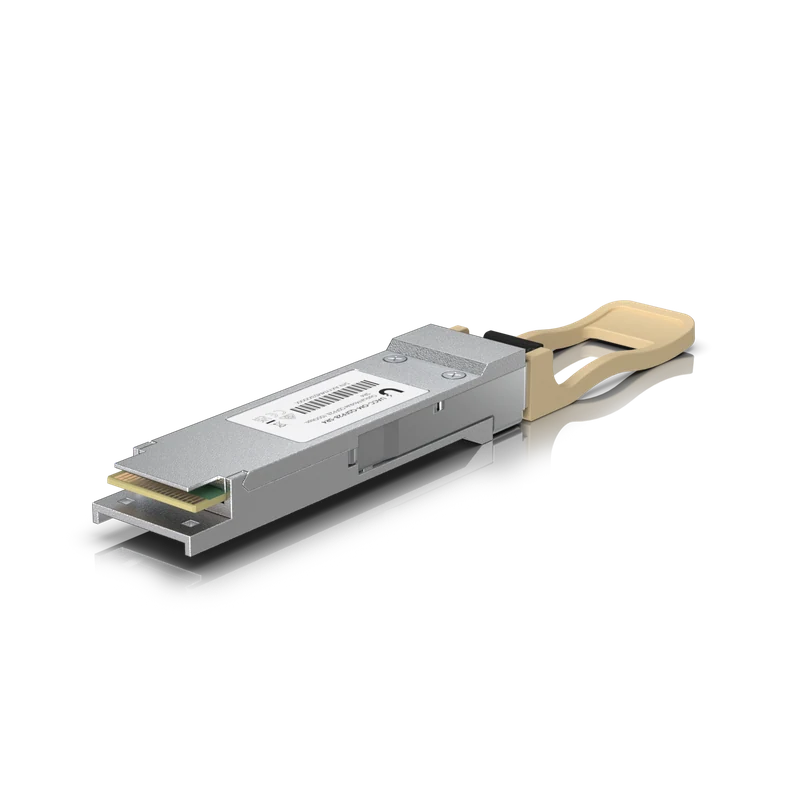

100G SR4 Multi-Mode Optical Module
Manufacturer part # UACC-OM-QSFP28-SR4
QSFP28 transceiver that supports 100G connections up to 100 m using multi-mode fiber with an MPO-12 Type B UPC connector.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-OM-QSFP28-SR4
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Form Factor
- QSFP28
- Connector
- MPO-12 Type B UPC
- Supported Media
- Multi-Mode Fiber
- TX Wavelength
- 850 nm
- RX Wavelength
- 850 nm
- Supported Data Rate
- 40 / 100 Gbps
- Supported Cable Distance
- OM4 - 100 m (328 ft) OM3 - 70 m (229 ft)
- Max. Power Consumption
- 2.5 W
- Pack Options
- Single Unit
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- Highlights
- Max data rate: 100 Gbps; Compatible with QSFP28 and QSFP+ interfaces; MPO-12 Type B UPC connector; Supports multi-mode fiber connections up to 100 m*
