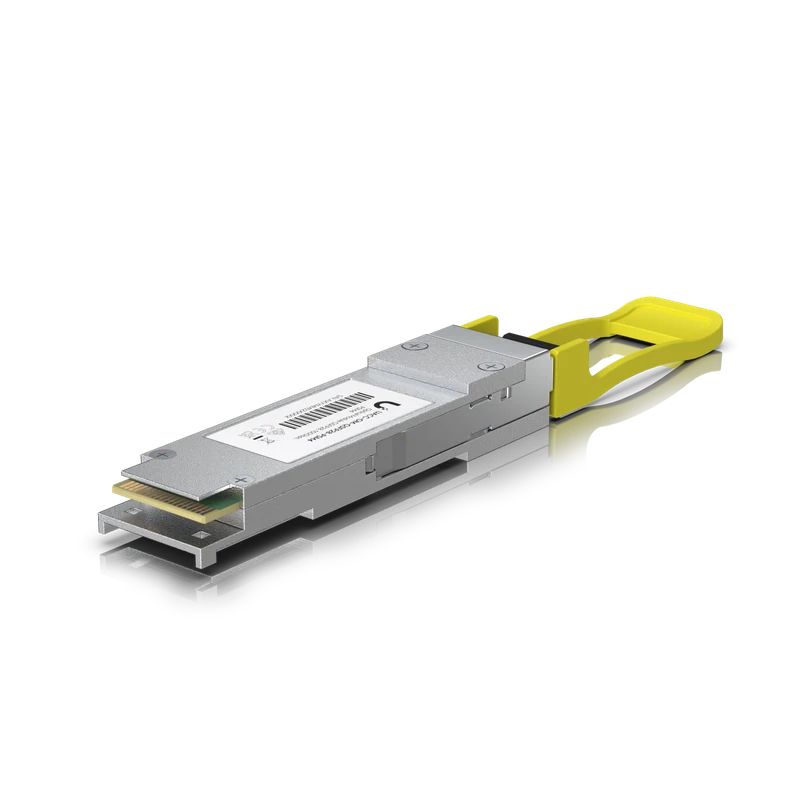

100G PSM4 Single-Mode Optical Module
Manufacturer model image; finish or pack appearance may differ.
Ubiquiti / Accessories

100G PSM4 Single-Mode Optical Module

SKU UACC-OM-QSFP28-PSM4

QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.

  • Max data rate: 100 Gbps
  • Compatible with QSFP28 and QSFP+ interfaces
  • MPO-12 Type B APC connector
each

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Need help with this part?

Specifications

View manufacturer details
Model
UACC-OM-QSFP28-PSM4
Catalog region
United States
Supply
Availability and lead time confirmed with quote
Form Factor
QSFP28
Connector
MPO-12 Type B APC
Supported Media
Single-Mode Fiber
TX Wavelength
1310 nm
RX Wavelength
1310 nm
Supported Data Rate
100 Gbps
Supported Cable Distance
2 km (1.2 mi)
Max. Power Consumption
3.5 W
Pack Options
Single Unit
Ambient Operating Temperature
0 to 70° C (32 to 158° F)
WARNING
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Highlights
Max data rate: 100 Gbps; Compatible with QSFP28 and QSFP+ interfaces; MPO-12 Type B APC connector; Supports single-mode fiber connections up to 2 km*
