Ubiquiti UniFi / Accessories

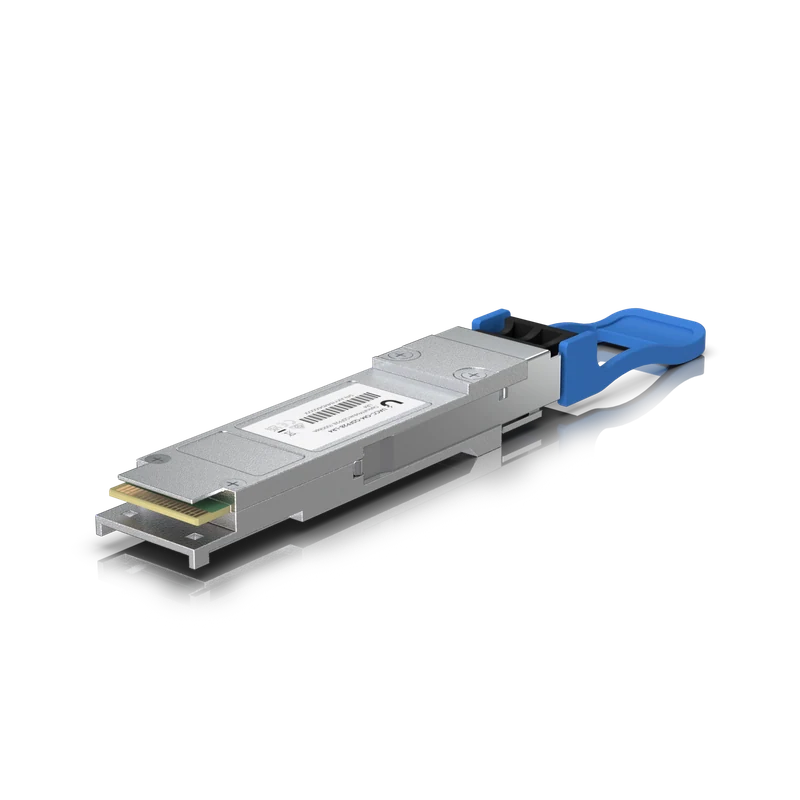

100G LR4 Single-Mode Optical Module
Manufacturer part # UACC-OM-QSFP28-LR4
QSFP28 transceiver that supports 100G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-OM-QSFP28-LR4
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Form Factor
- QSFP28
- Connector
- Duplex LC UPC
- Supported Media
- Single-Mode Fiber
- TX Wavelength
- 1295 / 1300 / 1304 / 1309 nm
- RX Wavelength
- 1295 / 1300 / 1304 / 1309 nm
- Supported Data Rate
- 100 Gbps
- Supported Cable Distance
- 10 km (6.2 mi)
- Max. Power Consumption
- 4 W
- Pack Options
- Single Unit
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- Highlights
- Max data rate: 100 Gbps; Compatible with QSFP28 and QSFP+ interfaces; Duplex LC UPC connector; Supports single-mode fiber connections up to 10 km*
