Ubiquiti UniFi / Accessories

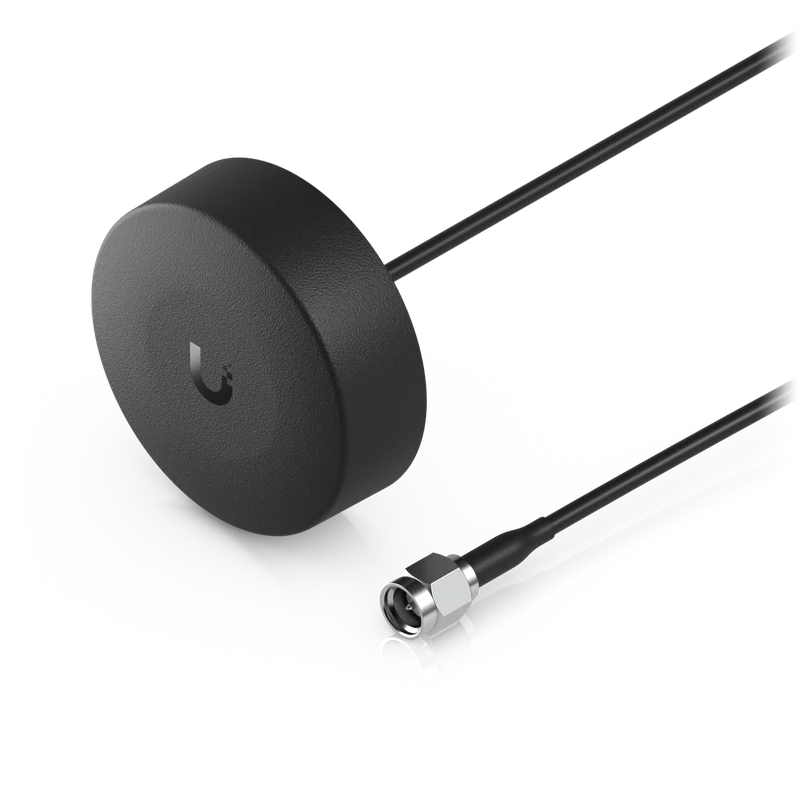

GNSS Antenna
Manufacturer part # UACC-GNSS-Antenna
Compact active IP67-rated GNSS antenna with an integrated low-noise LNA.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-GNSS-Antenna
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- ⌀46 x 15 mm (⌀1.8 x 0.6")
- Weight
- 84 g (3 oz)
- Enclosure Material
- Acrylonitrile butadiene styrene thermoplastic (ABS PA-757)
- Mount Material
- Stainless steel
- Wind Survivability
- 60–70 m/s (134–157 mph)
- Wind Loading
- 1.5–3.0 kPa
- Mounting
- Pole, wall mount
- Pole Mount Diameter
- ⌀0.75–1.42" (⌀19–36 mm)
- Weatherproofing
- IP67
- Supported Voltage Range
- 3.0-5.0V DC , 3.3V typ.
- Frequency Range
- 1559–1606 MHz
- Gain
- 2 dBi
