Ubiquiti / Accessories

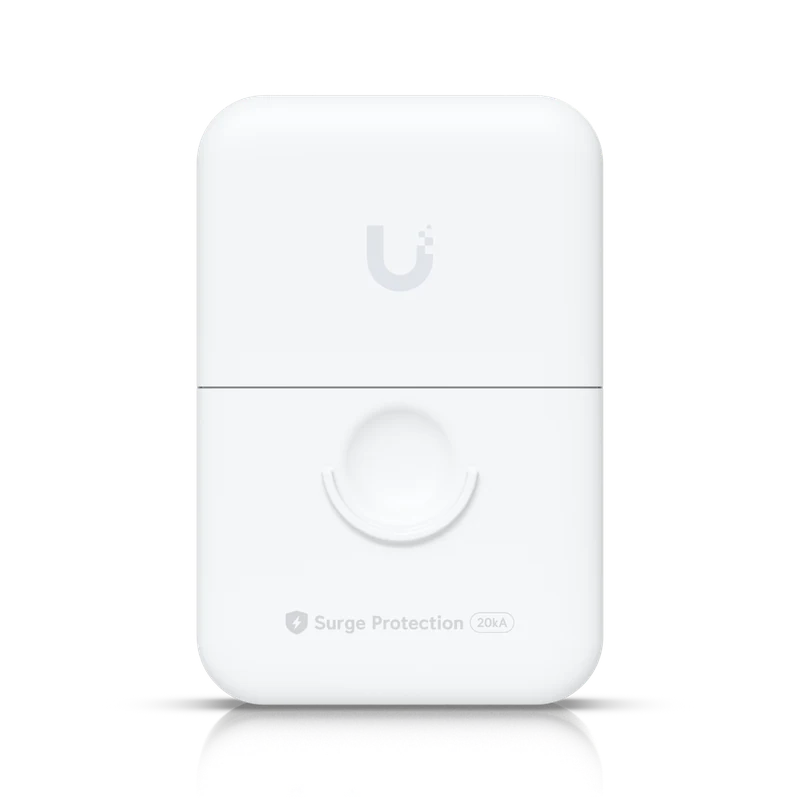

Ethernet Surge Protection Outdoor (20kA)
Manufacturer part # UACC-ETH-SP-Pro
ESD protection for outdoor high-speed networks.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- UACC-ETH-SP-Pro
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Catalog inclusion
- Shared Ubiquiti accessory explicitly listed in the UniFi US catalog
- Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Weight
- 95 g (3.35 oz)
- Enclosure Material
- Polycarbonate
- Weatherproofing
- IPX5
- Networking Interface
- (2) RJ45 female connectors
- DC Spark-Over Voltage
- 90V @ 100V/s
- Max. Impulse Spark-Over Voltage
- 600V @ 1kV/µs
- Discharge Current
- 20kA
- Insulation
- Max. Resistance: 1G ohm @ 50V
- Max. Capacitance
- 1.0 pF @ 1 MHz
- Data Line Protection
- Up to 10 Gbps
- Highlights
- Protects outdoor Ethernet devices, up to 20kA discharge current.; (2) Passive, surge-protected RJ45 connections; Quick and easy installation; Compatible with 10 GbE networks
