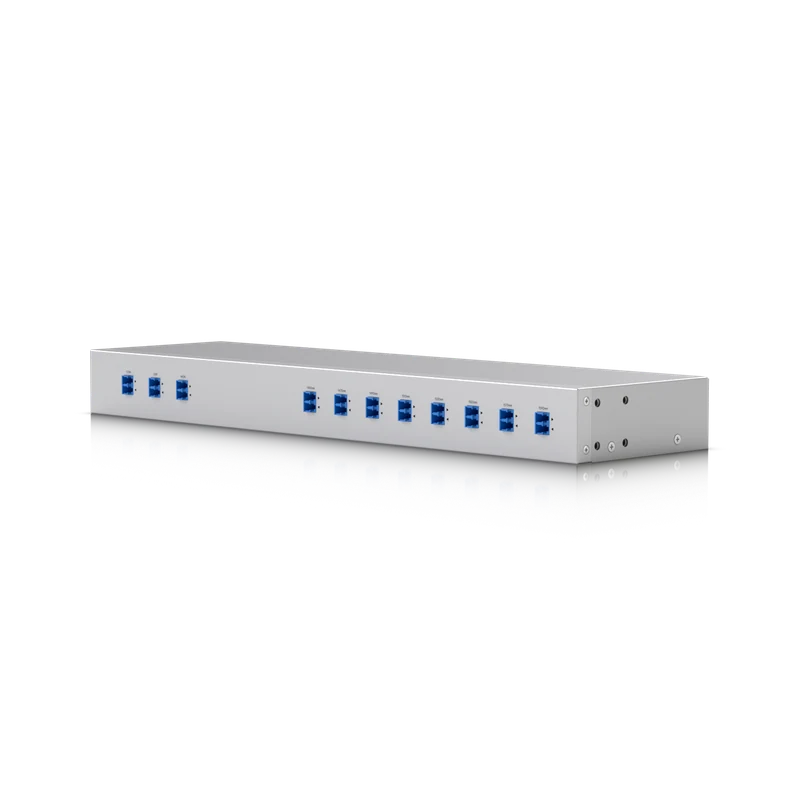

CWDM Mux Demux 8

SKU UACC-CWDM-8

Rack-mountable 8-channel CWDM mux demux designed to increase capacity of existing fiber infrastructure.

(8) 1450/1470/1490/1510/1530/1550/1570/1590 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer

Quantity

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

Model: UACC-CWDM-8
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Enclosure Material: SGCC steel
Weight: 1.4 kg (3.2 lb)
Pigtail and Connector Type: COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC
Connector: (1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450 to 1590 nm (LC/UPC)
Type: SMF-28e
Length: ≥0.5 to 1 m
Isolation: Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB
Channel Count: 8 CH Mux/Demux
Channel Center Wavelength: 1450/1470/1490/1510/1530/1550/1570/1590 nm
Min. Channel Passband: ±6.5 nm
Insertion Loss: <2.5 dB (Max.)
Highlights: (8) 1450/1470/1490/1510/1530/1550/1570/1590 nm channel ports; (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables; (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer; (1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
