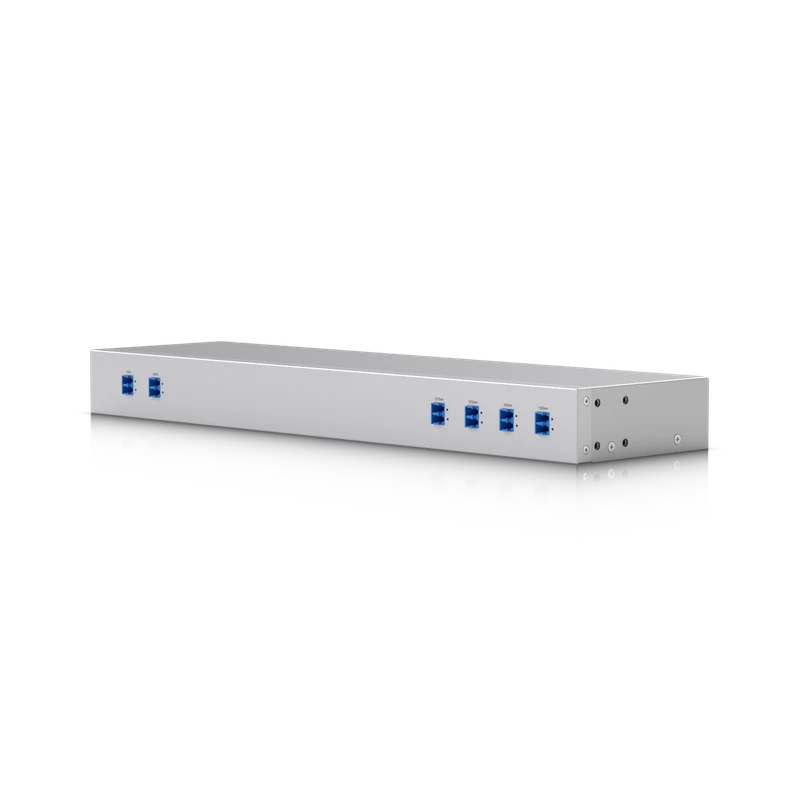

CWDM Mux Demux 4

SKU UACC-CWDM-4

Rack-mountable 4-channel mux demux designed to increase capacity of existing fiber infrastructure.

(4) 1270/1290/1310/1330 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer

Quantity

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

Model: UACC-CWDM-4
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Enclosure Material: SGCC steel
Weight: 1.4 kg (3.2 lb)
Pigtail and Connector Type: 0.9 mm white LC/UPC
Connector: (1) COM (LC/UPC) (1) MON (LC/UPC) (1) 1270 to 1330 nm (LC/UPC)
Type: SMF-28e
Length: ≥0.5 to 1 m
Isolation: Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB
Channel Count: 4 CH Mux/Demux
Channel Center Wavelength: 1270/1290/1310/1330 nm
Min. Channel Passband: ±6.5 nm
Insertion Loss: <1.5 dB (Max.)
Highlights: (4) 1270/1290/1310/1330 nm channel ports; (1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables; (1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
