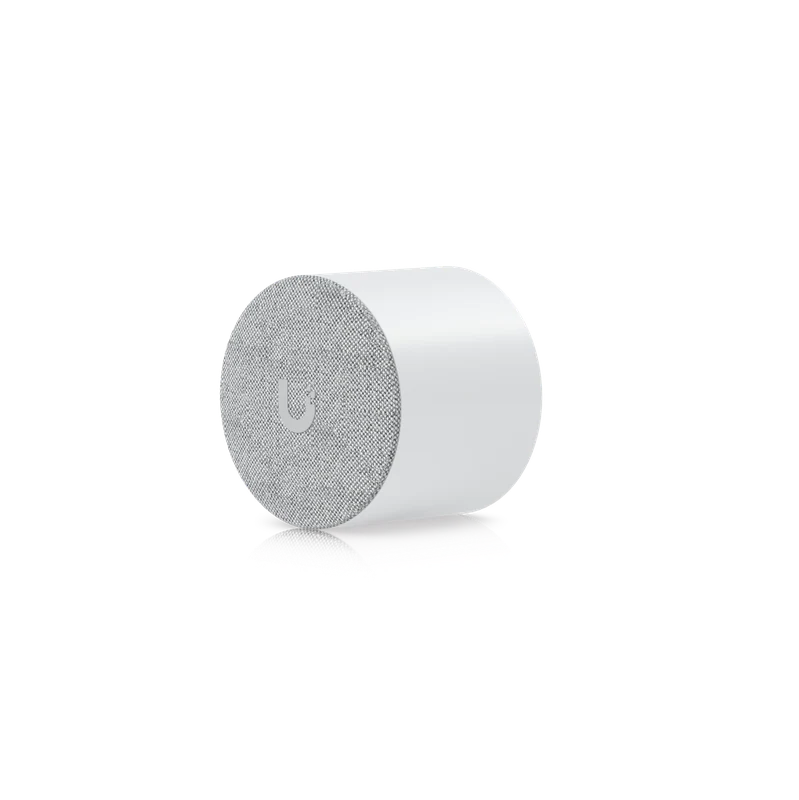

PoE Smart Chime

Name: PoE Smart Chime
Brand: Ubiquiti
SKU: UACC-Chime-PoE

SKU UACC-Chime-PoE

PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.

Quantity

each

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

Model: UACC-Chime-PoE
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: Device: ⌀62 x 54 mm (⌀2.5 x 2.1") In-wall mount: ⌀89 x 63.1 mm (⌀3.5 x 2.5") On-wall Mount: ⌀62 x 20.2 mm (⌀2.5 x 0.8")
Weight: Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz)
Enclosure Material: Polycarbonate, aluminum alloy
Mount Material: Polycarbonate, zinc alloy
Networking Interface: 10/100 MbE port
Power Method: PoE
Supported Voltage Range: 44–57V DC
Max. Power Consumption: 3W
ESD Protection: Air: ± 8kV, contact: ± 4kV
LEDs: R/G/B/W
Buttons: (1) Factory reset
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Highlights: Up to 80dB speaker sound; Connect and power using PoE
