Ubiquiti / Door Access

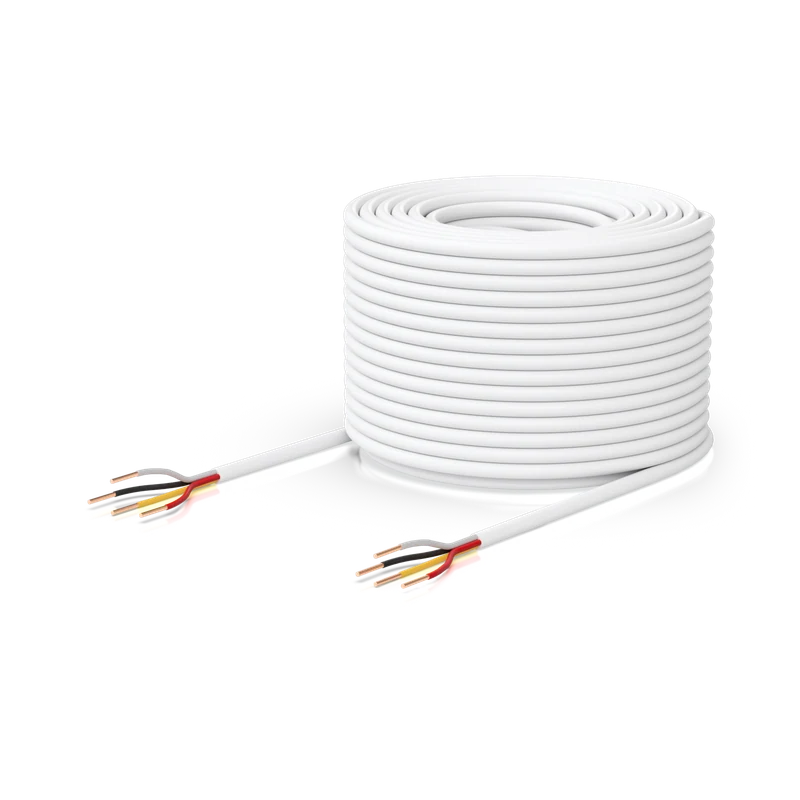

Door Lock Relay Cable — 2-Pair Relay Cable
SKU UACC-Cable-DoorLockRelay-2P
A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
- 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
- 2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
- 1-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock
Select an option 2 available
each
We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.
Need help with this part?Specifications
View manufacturer details- Model
- UACC-Cable-DoorLockRelay
- Variant
- 2-Pair Relay Cable
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Length
- 152.4 m (500 ft)
- Material
- Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC)
- Insulation
- UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
- Current Rating
- 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length
- Flame Rating
- VW-1
- Conductor Wire Gauge
- UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG
- Weight
- UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
- Jacket Outer Diameter
- UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
- Jacket Color
- White
- Bend Radius
- UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
- Pulling Tension
- UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf
- Highlights
- 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub; 2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub; 1-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock; 2-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock — (2) 22 AWG conductors for a door position sensor
