Ubiquiti UniFi / Switches

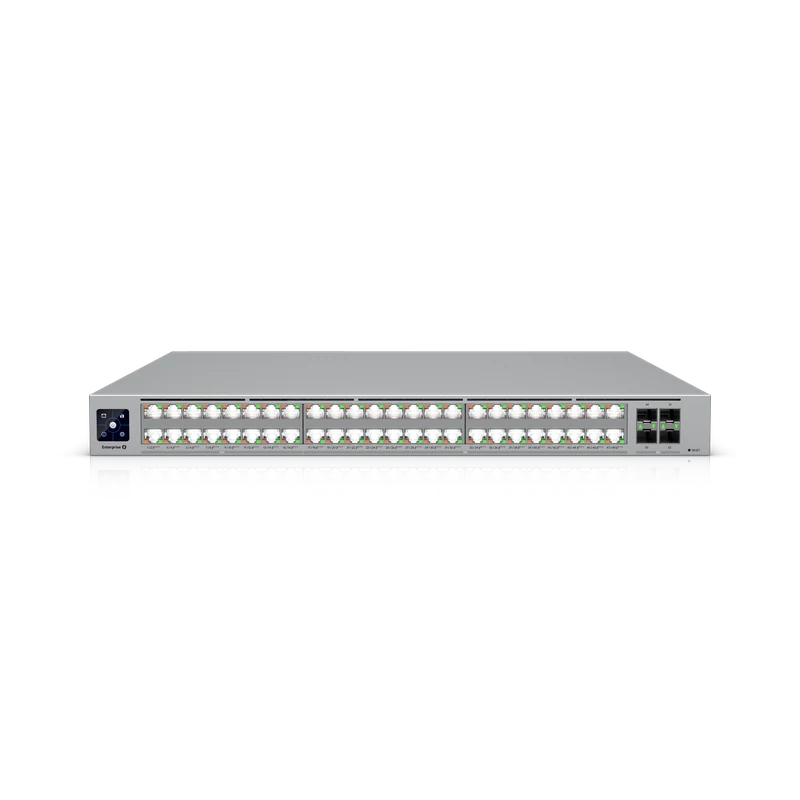

Switch Enterprise Campus 48 PoE
Manufacturer part # ECS-48-PoE
Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Prepared for your project.
Pricing and availability are confirmed in your quote.
Unit of sale: each
Equipment and quantities reviewed Shipping confirmed before payment
Need help with this part? A closer look
Product details
Review the manufacturer’s information and tell us about any project-specific requirements.
Manufacturer / source details- Model
- ECS-48-PoE (2150W)
- Catalog region
- United States
- Supply
- Availability and lead time confirmed with quote
- Dimensions
- 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
- 2.5 GbE RJ45
- 16 (All PoE+++) (2.5G/1G/100M/10M)
- 10 GbE RJ45
- 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28
- 4 (25G/10G/1G)
- Max. PoE Output
- Up to PoE+++
- Total PoE Availability
- 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W
- Redundancy
- (2) Hot-Swappable PSUs (4) Hot-Swappable Fans
- Form Factor
- Rack Mount (1U, Full-Depth)
- Switching Capacity
- 920 Gbps
- Total Non-Blocking Throughput
- 460 Gbps
- Forwarding Rate
- 684 Mpps
- Supported VLANs
- 1,000
