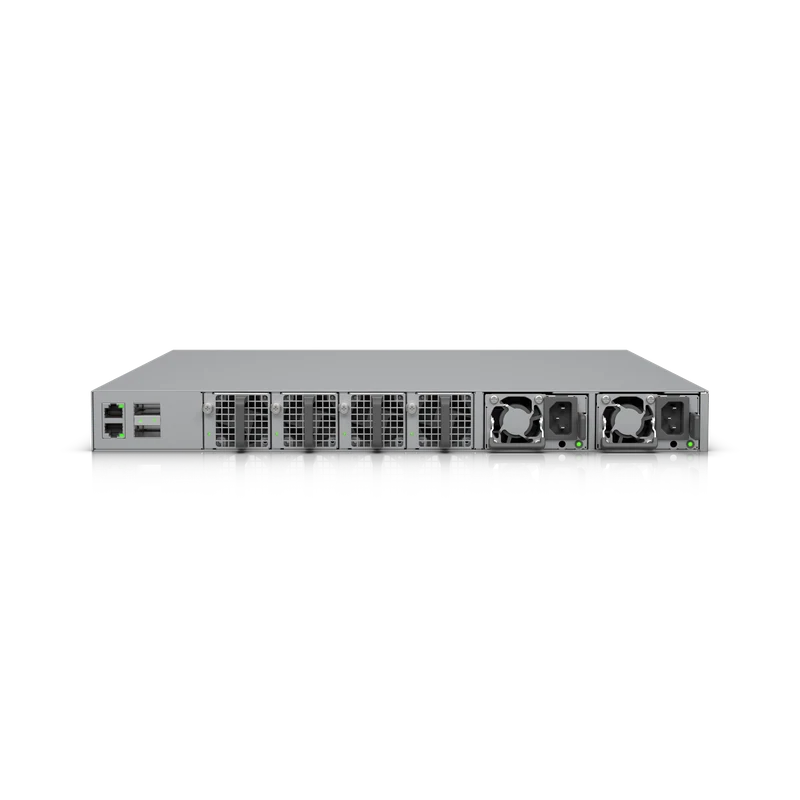

Switch Enterprise Campus 24S PoE

SKU ECS-24S-PoE

Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules

Announced product. Availability and delivery timing must be confirmed before an order can be quoted.

Quantity

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

View manufacturer details

Model: ECS-24S-PoE (1050W)
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: 442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5")
1 GbE RJ45: 1 (1G/100M/10M)
2.5 GbE RJ45: 8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45: 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28: 4 (25G/10G/1G)
100G QSFP28: 2 (100G)
Console: 1
Max. PoE Output: Up to PoE+++
Total PoE Availability: 100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy: Switch Stacking (2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Form Factor: Rack Mount (1U, Full-Depth)
Switching Capacity: 460 Gbps
