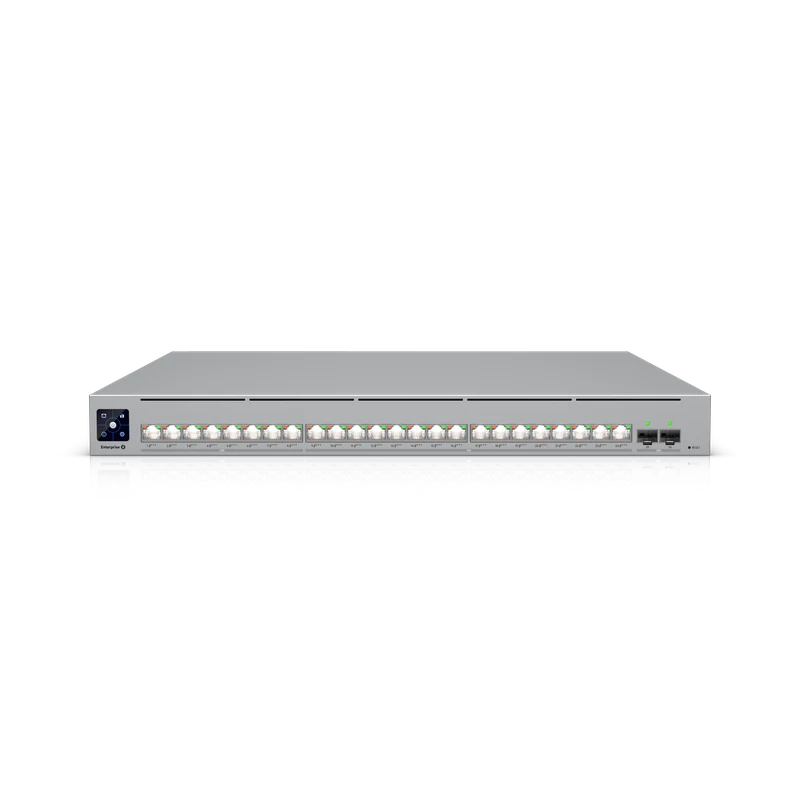

Switch Enterprise Campus 24 PoE

SKU ECS-24-PoE

Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules

Quantity

We’ll confirm pricing, availability and shipping in your quote. Payment follows quote approval.

Specifications

View manufacturer details

Model: ECS-24-PoE (1050W)
Catalog region: United States
Supply: Availability and lead time confirmed with quote
Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
2.5 GbE RJ45: 8 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45: 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28: 2 (25G/10G/1G)
Max. PoE Output: Up to PoE+++
Total PoE Availability: 100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
Redundancy: (2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Form Factor: Rack Mount (1U, Full-Depth)
Switching Capacity: 460 Gbps
Total Non-Blocking Throughput: 230 Gbps
Forwarding Rate: 342 Mpps
Supported VLANs: 1,000
